Integrating Solar Panels with Keder Systems on Boat Tops
A Clean, Flexible Approach to Marine Solar Installation
Adding solar panels to a boat is one of the most effective ways to improve onboard power independence, but the challenge is always the same: How do you mount them securely without compromising the look and function of the vessel?
At Keder Solutions®, we’ve seen fabricators take a smarter approach by using sewable PVC Keder track and welded flap keder to integrate solar panels directly into canvas structures like dodgers and bimini tops. The result is a low-profile, secure system that maintains the clean lines of the boat while adding real functionality.
Here’s how the system comes together.
Why Use Keder for Solar Panel Integration?
Traditional mounting methods can add bulk, require permanent hardware, or make panel removal difficult. The keder track and welded flap keder system offers a more refined solution.
By sewing the track directly to the solar panel and the welded flap keder to the canvas top, fabricators create a slide-in mounting system that is both secure and removable.
This approach offers several key advantages:
Continuous Load Distribution: Unlike snap fasteners or zippers that concentrate stress at single points, the sewable flange rail distributes the weight and wind load evenly across the entire edge of the canvas; reducing wear and extending the life of the top.
Engineered for High-Wind Stability: At cruising speed, unsecured panels can lift, flutter, and catch wind. The Keder system keeps flexible solar panels completely flush and secure against the bimini, eliminating that problem entirely.
Eliminates Fabric Sag: Solar panels aren’t light. Without proper support, their weight causes the bimini canvas to stretch and sag over time. The rigid profile of the track acts as a structural element, maintaining the canvas’s shape season after season.
Tool-Free Removal: Panels slide out quickly for storage, maintenance, or seasonal winterization; no tools, no hardware to deal with.
Flexible Integration: Works with both sail and power boats across a wide range of canvas configurations.
Materials and Durability
The sewable flange rail (85-KR-RF) is built specifically for the demands of the marine environment.
The wide PVC flange stitches directly onto marine-grade canvas including Sunbrella or heavy-duty enclosure curtains using standard fabrication equipment. No special tooling or modifications to existing shop setups are required.
Unlike traditional metal fasteners or tracks that pit and rust in saltwater environments, the flange rail is completely marine-grade, UV-stabilized, and impervious to saltwater corrosion. It’s a component that holds up season after season without maintenance headaches.
How the Fabrication Process Works
Once the canvas top dimensions are established and the appropriate solar panels are selected, the installation process is straightforward and repeatable.
- Attach Track to the Panels The Keder track is sewn to the underside of each solar panel using a size 22 diamond point needle and PTFE thread. This ensures a strong, weather-resistant connection that holds up over time.
- Mock Up Panel Placement With the welt already installed in the track, the panels are positioned on the boat while the canvas top is under proper tension. This allows for accurate marking of panel placement and alignment.

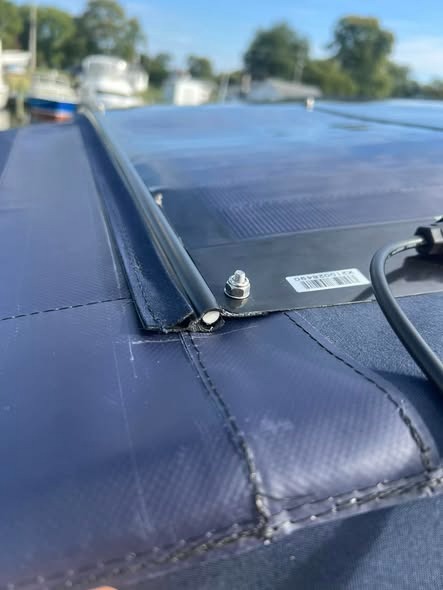

- Sew Welded Flap Keder to the Canvas Top The top is removed, and the welded flap keder is sewn onto the canvas to match the layout marks created during the mock-up stage. This step ensures the panels will slide into place cleanly during final installation.

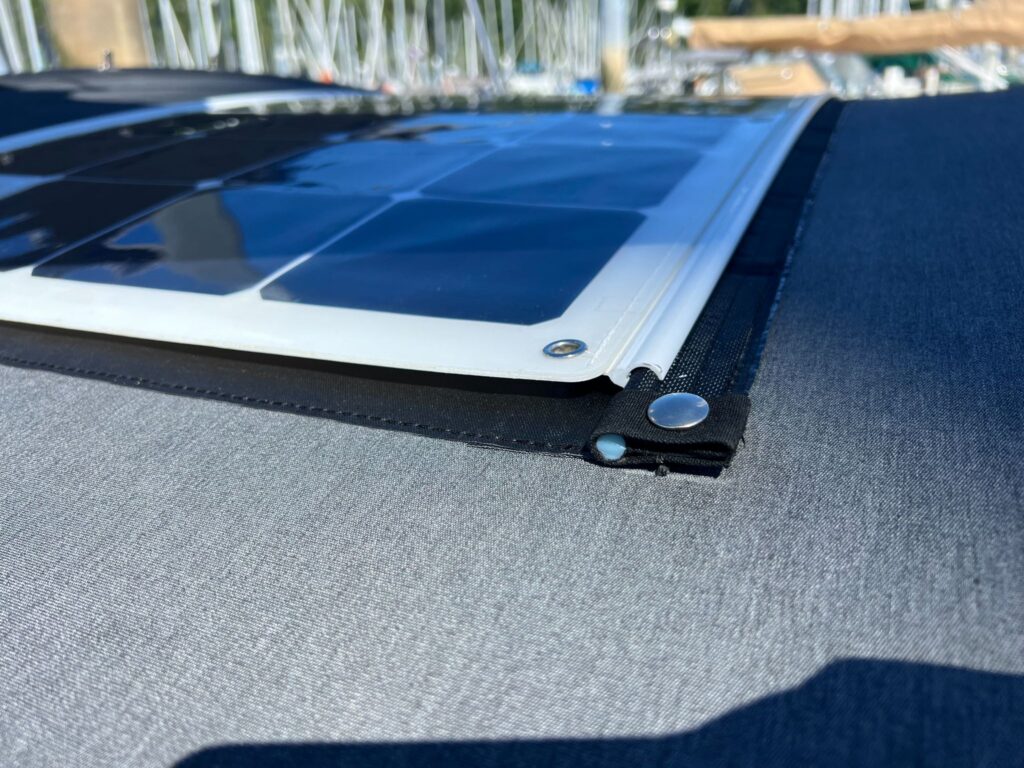

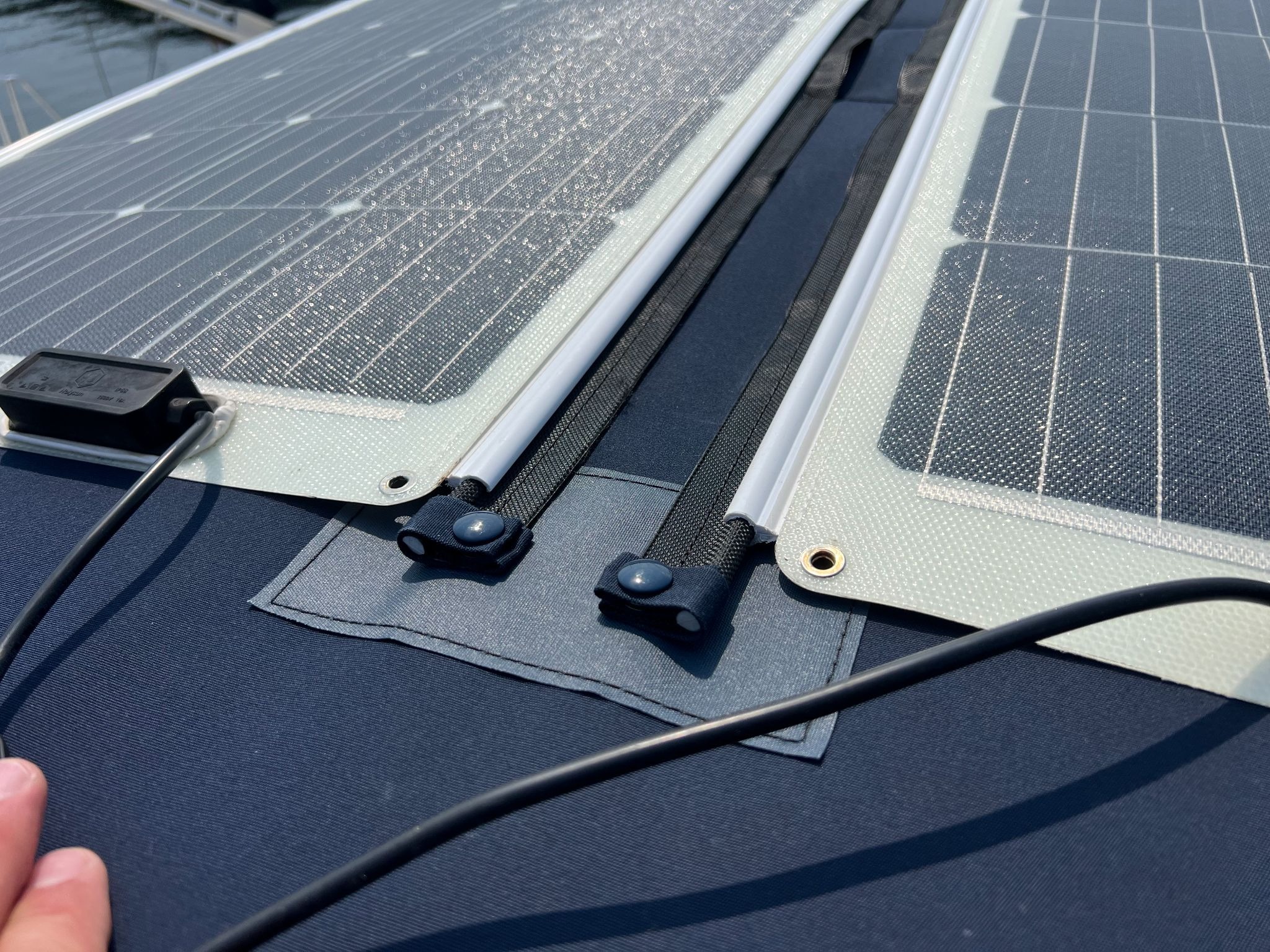

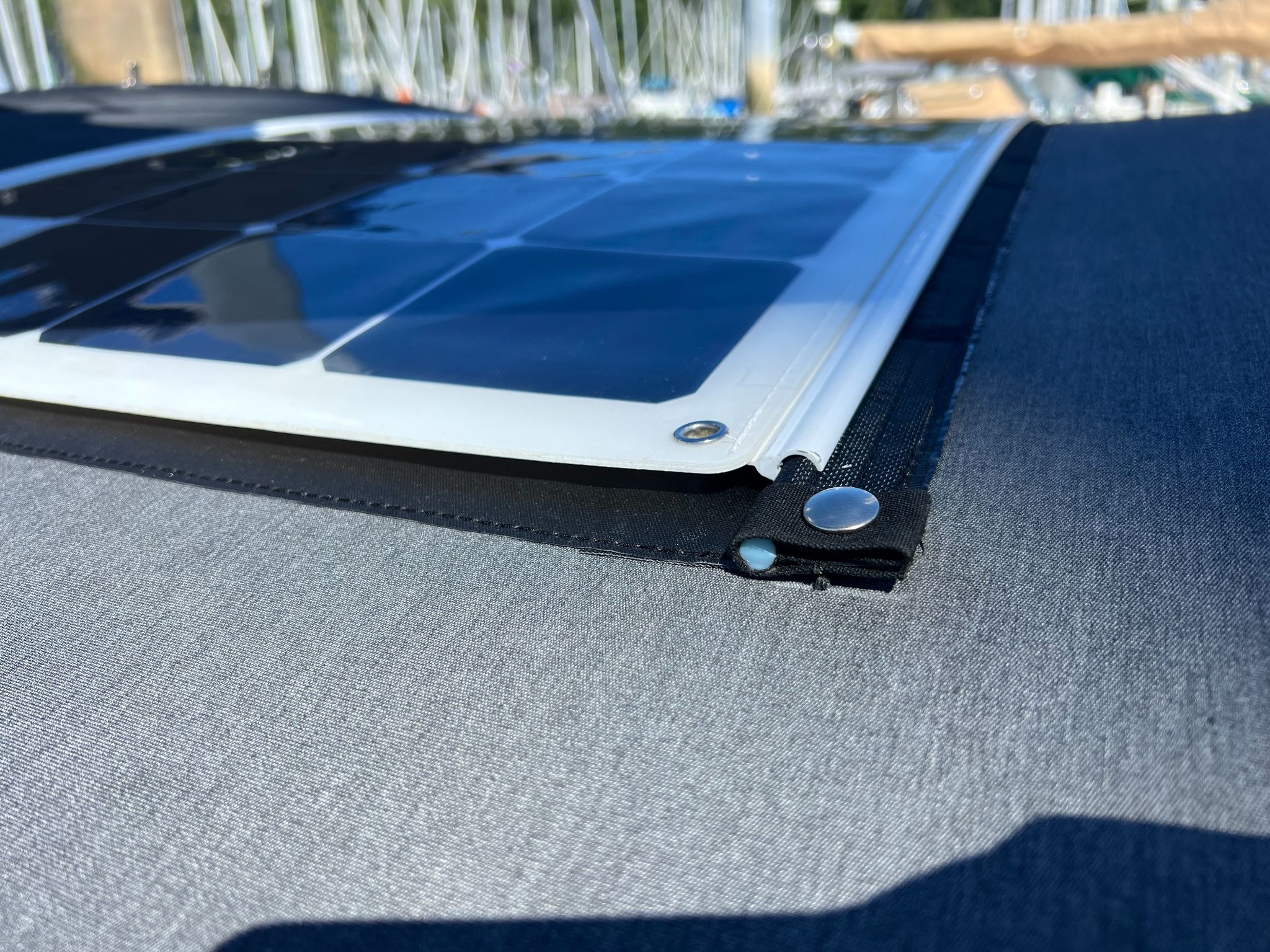

- Final Installation and Securing Once reinstalled, the panels slide onto the welt and lock into position in seconds. Small snap tabs are added as a secondary measure to prevent any movement or sliding during use.
A Streamlined Result Without Compromise

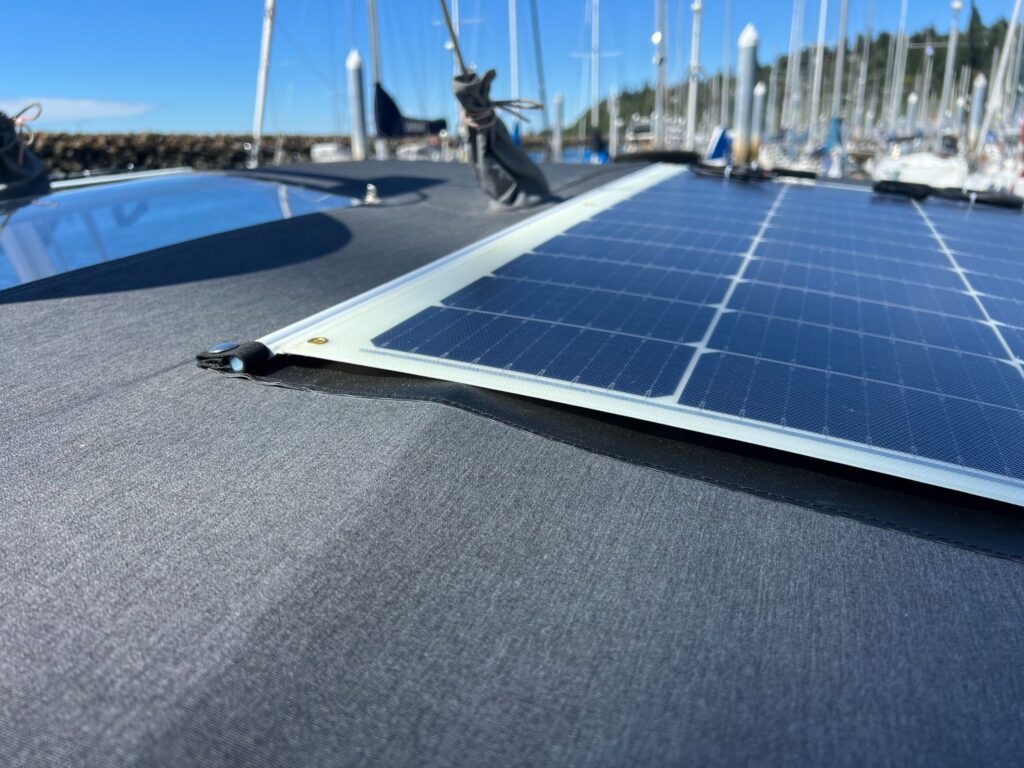

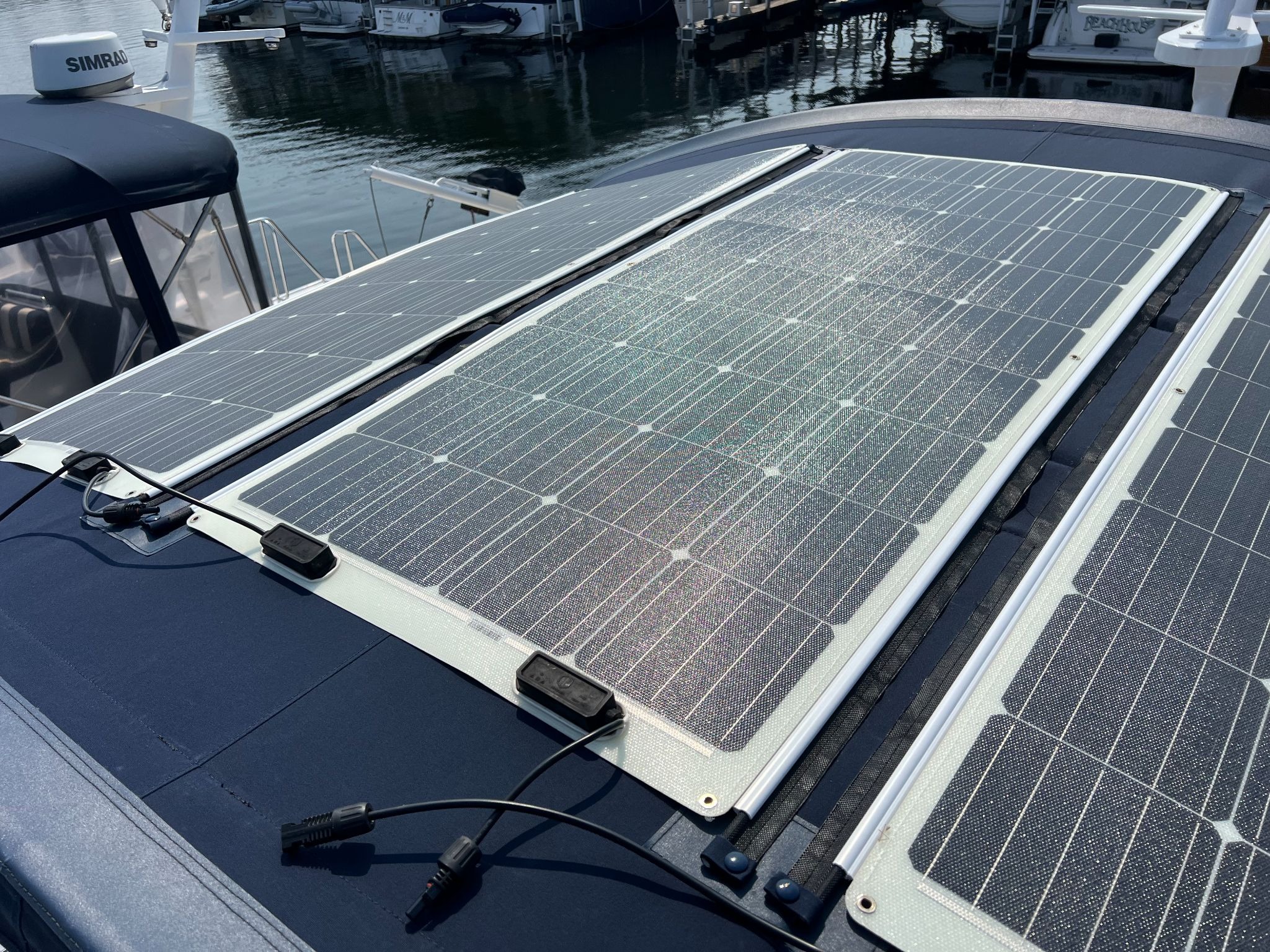

The finished system creates a conformal solar array that integrates directly into the boat’s canvas structure. There’s no excess hardware, no bulky mounting brackets, and no disruption to the overall look of the vessel.
At the same time, the panels remain fully functional, accessible, and easy to remove when needed. When a storm is approaching or it’s time for seasonal layup, panels slide out quickly and can be stowed safely with no tools, and no struggle.
A Practical Solution for Modern Marine Applications
As more boat owners look to add solar capability, solutions like this provide a balance between performance, durability, and aesthetics. The Keder system allows fabricators to deliver a clean, professional installation while giving end users the flexibility they expect.
Whether you’re building new or retrofitting an existing top, integrating solar panels with Keder track and welt offers a reliable, proven approach that fits naturally into modern marine design.
